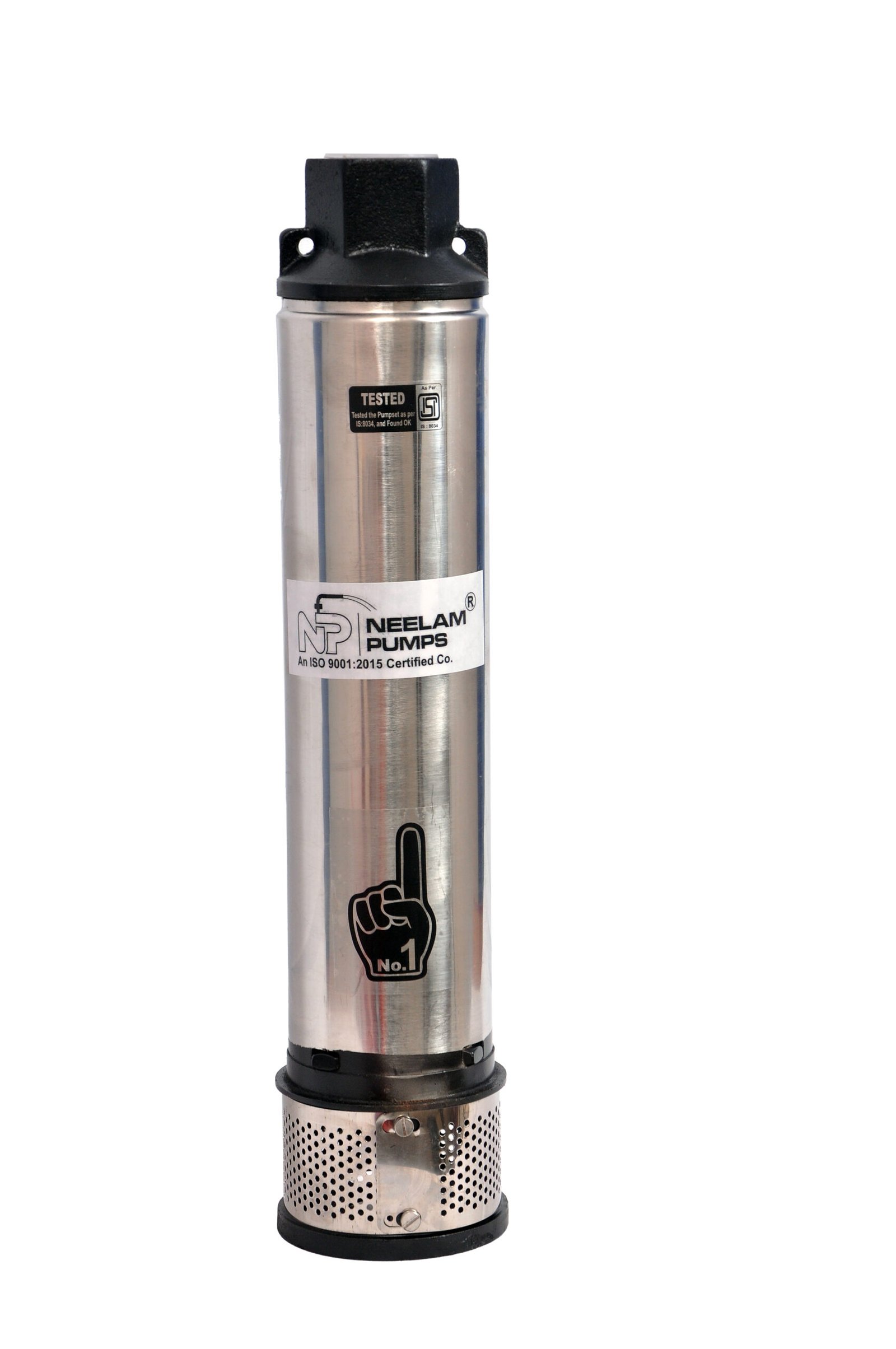

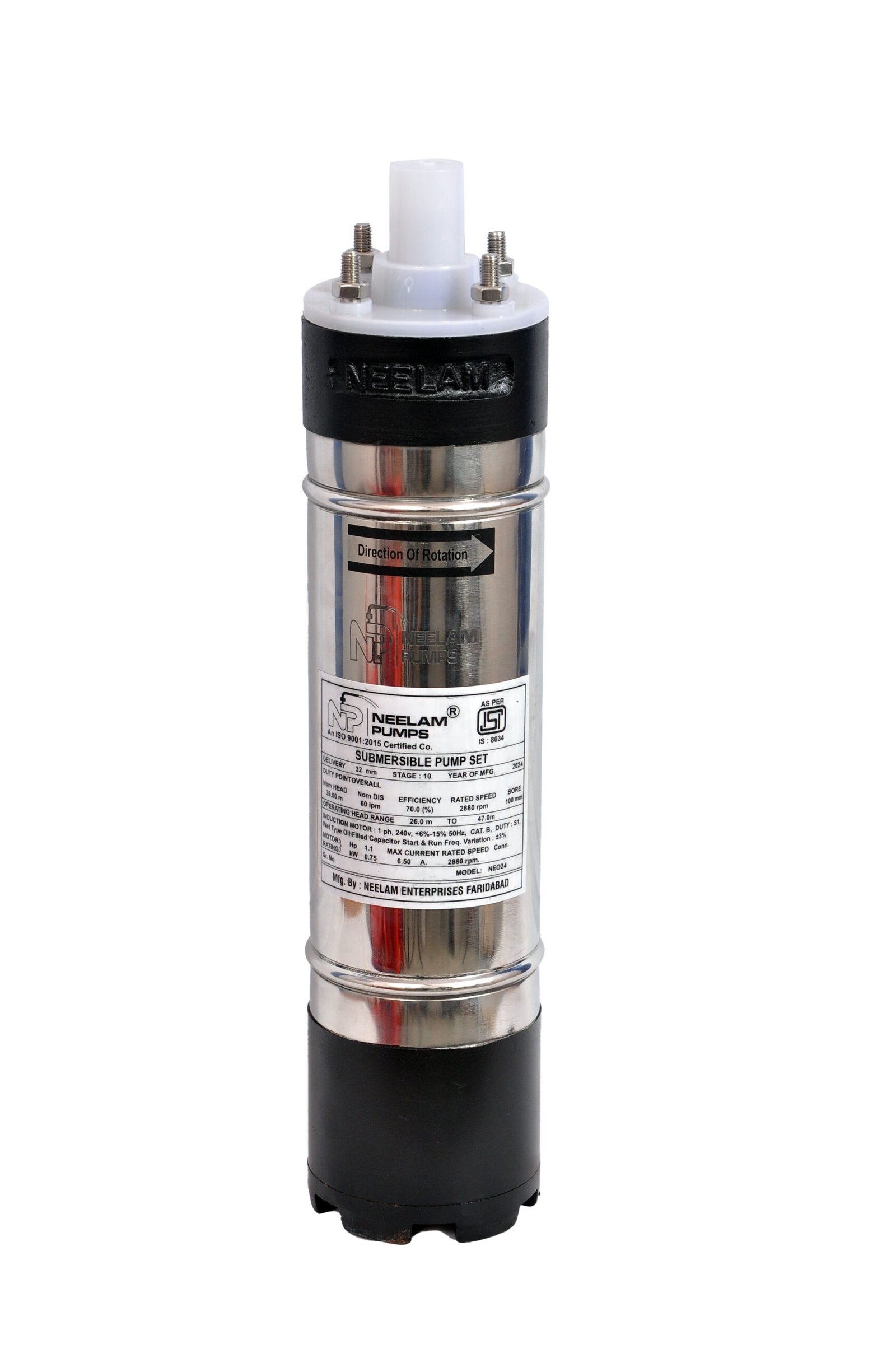

Submersible Pump Set
Neelam Pumps introduces world class Submersible Pumps. All pump pass through stringent quality requirement & delivery high performance & have high reliability
Applications
- Domestic Water Supply
- Drip Sprinkler Irrigation
- High rise buildings
- In-well bore
- Fire Fighting
- Industries
Features
- High Efficiency
- Corrosion &abrasion
- Free internals
- Stainless steel jacket
- Dynamically Balanced router
- Easily rewindable
Description
| Nominal Diameter : 4″ | Nominal Delivery : 1″ | |||||||||
| Sr. No. | Model | Motor Rating (HP) | Motor Rating (K.W) | Stages | Delivery Size ( MM) | DISCHARGE IN LPM | ||||
| 10 | 20 | 25 | 30 | |||||||
| TOTAL HEAD IN METRES | ||||||||||
| 1 | NEOFC2 | 0.5 | 0.37 | 8 | 25 | 40 | 36 | 31 | 24 | |
| 2 | NEOFC2 | 0.75 | 0.55 | 10 | 25 | 50 | 45 | 39 | 31 | |
| 3 | NEOFC2 | 0.75 | 0.55 | 13 | 25 | 66 | 58 | 51 | 40 | |
| 4 | NEOFC2 | 1.1 | 0.8 | 15 | 25 | 76 | 68 | 59 | 46 | |
| 5 | NEOFC2 | 1.1 | 0.8 | 18 | 25 | 92 | 81 | 71 | 55 | |
| 6 | NEOFC2 | 1.5 | 1.1 | 21 | 25 | 106 | 95 | 83 | 66 | |
| 7 | NEOFC2 | 1.5 | 1.1 | 25 | 25 | 128 | 113 | 100 | 80 | |
| 8 | NEOFC2 | 2 | 1.5 | 30 | 25 | 152 | 135 | 119 | 95 | |
| Nominal Diameter : 4″ | NOMINAL DELIVERY : 1.25″ | ||||||||||||
| Sr. No. | Model | Motor Rating (HP) | Motor Rating (K.W) | Stages | Delivery Size ( MM) | DISCHARGE IN LPM | |||||||
| 30 | 40 | 50 | 60 | 70 | 80 | 85 | |||||||
| TOTAL HEAD IN METRES | |||||||||||||
| 1 | NEOFC4 | 0.5 | 0.37 | 5 | 40 | 26 | 24 | 22 | 20 | 17 | 14 | 13 | |
| 2 | NEOFC4 | 0.75 | 0.55 | 7 | 40 | 37 | 35 | 32 | 29 | 25 | 20 | 17 | |
| 3 | NEOFC4 | 1.1 | 0.8 | 10 | 40 | 52 | 50 | 46 | 41 | 35 | 28 | 25 | |
| 4 | NEOFC4 | 1.5 | 1.1 | 12 | 40 | 62 | 60 | 55 | 50 | 43 | 35 | 31 | |
| 5 | NEOFC4 | 1.5 | 1.1 | 15 | 40 | 78 | 74 | 69 | 62 | 54 | 44 | 39 | |
| 6 | NEOFC4 | 2 | 1.5 | 19 | 40 | 98 | 94 | 87 | 79 | 68 | 56 | 50 | |
| 7 | NEOFC4 | 3 | 2.2 | 22 | 40 | 114 | 108 | 100 | 90 | 78 | 63 | 56 | |
| 8 | NEOFC4 | 3 | 2.2 | 25 | 40 | 129 | 122 | 112 | 102 | 89 | 72 | 63 | |
| 9 | NEOFC4 | 3 | 2.2 | 28 | 40 | 144 | 135 | 124 | 114 | 100 | 81 | 70 | |
| Nominal Diameter : 4″ | NOMINAL DELIVERY : 1.25″ | ||||||||||||||
| Sr. No. | Model | Motor Rating (HP) | Motor Rating (K.W) | Stages | Delivery Size ( MM) | DISCHARGE IN LPM | |||||||||
| 90 | 100 | 110 | 120 | 130 | 140 | 150 | 160 | 170 | |||||||
| TOTAL HEAD IN METRES | |||||||||||||||
| 1 | NEOFC7 | 1.1 | 0.8 | 5 | 40 | 26 | 25 | 24 | 22 | 19 | 17 | – | – | ||
| 2 | NEOFC7 | 1.5 | 1.1 | 7 | 40 | 37 | 35 | 33 | 31 | 29 | 26 | 24 | 20 | 16 | |
| 3 | NEOFC7 | 2 | 1.5 | 9 | 40 | 48 | 45 | 43 | 40 | 37 | 33 | 30 | 25 | 20 | |
| 4 | NEOFC7 | 3 | 2.2 | 12 | 40 | 67 | 63 | 60 | 66 | 52 | 46 | 41 | 34 | 26 | |
| 5 | NEOFC7 | 3 | 2.2 | 14 | 40 | 77 | 73 | 70 | 65 | 60 | 54 | 47 | 39 | 31 | |
| 6 | NEOFC7 | 4 | 3 | 18 | 40 | 98 | 94 | 89 | 83 | 77 | 69 | 60 | 50 | 40 | |
| 7 | NEOFC7 | 5 | 3.7 | 22 | 40 | 121 | 116 | 110 | 102 | 94 | 85 | 74 | 63 | 50 | |
| 8 | NEOFC7 | 5 | 3.7 | 25 | 40 | 137 | 130 | 122 | 115 | 105 | 96 | 86 | 73 | 56 | |
| Sr. No. | Model | Motor Rating (HP) | Motor Rating (K.W) | Stages | Delivery Size ( MM) | DISCHARGE IN LPM | ||||
| 200 | 250 | 300 | 350 | |||||||
| TOTAL HEAD IN METRES | ||||||||||
| 1 | NEOFC18 | 1.5 | 1.1 | 5 | 50 | 16 | 15 | 12 | 8 | |
| 2 | NEOFC18 | 2 | 1.5 | 6 | 50 | 21 | 19 | 15 | 10 | |
| 3 | NEOFC18 | 3 | 2.2 | 7 | 50 | 26 | 24 | 18 | 12 | |
| 4 | NEOFC18 | 3 | 2.2 | 8 | 50 | 29 | 26 | 21 | 14 | |
| 5 | NEOFC18 | 3 | 2.2 | 9 | 50 | 34 | 29 | 23 | 16 | |
| 6 | NEOFC18 | 4 | 3 | 12 | 50 | 40 | 36 | 28 | 18 | |
| 7 | NEOFC18 | 5 | 3.7 | 13 | 50 | 44 | 40 | 31 | 20 | |
| 8 | NEOFC18 | 5 | 3.7 | 14 | 50 | 50 | 43 | 35 | 22 | |
